2930 - Connections

Modified on Tue, Feb 14, 2023 at 1:17 PM

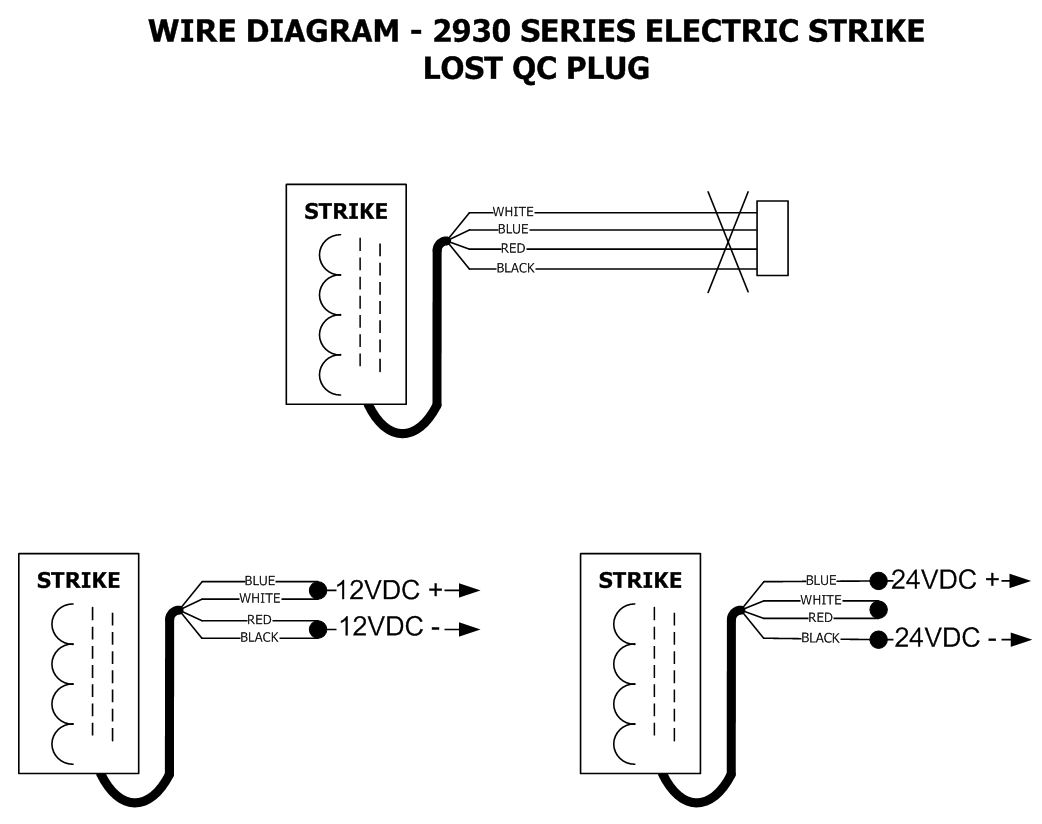

If the quick connectors for 12VDC and 24VDC have been misplaced, you can cut the harness off and follow the below wiring information.
