2930 Electric Strike - Not Unlocking

Modified on Tue, Feb 14, 2023 at 1:15 PM

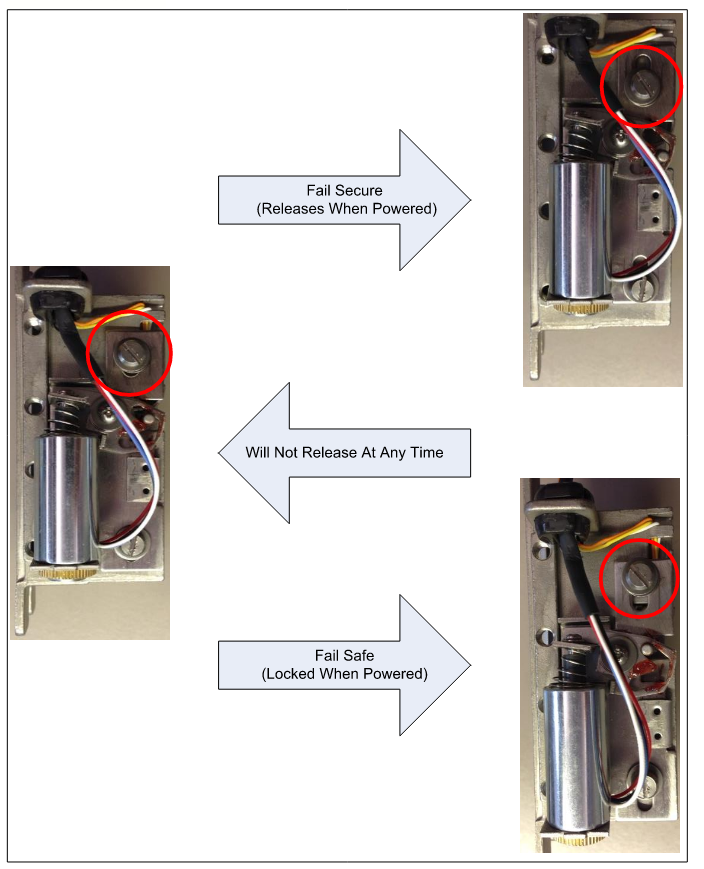

The solenoid has two (2) locations depending on if you are installing in a Fail-Secure or Fail-Safe environment. If the solenoid is not shifted completely into either position, then it will cause the gate to not be released. Please reference the images below for correct location.
