8300 Series Operator - Common Problems

Modified on Thu, Jun 23, 2022 at 8:18 AM

ISSUESOLUTIONADDITIONAL INFORMATION

Operator will not commission. Red LED stays flashing

Ensure they are pressing the correct SW1 button. Both the I/O control board and the Adjustment board have SW1 switches. Pressing the SW1 switch on the I/O board (board where you made you Actuator connections) is where you run the calibration


Operator shows it was commission (red LED is solid), but the door never run a commissioning.

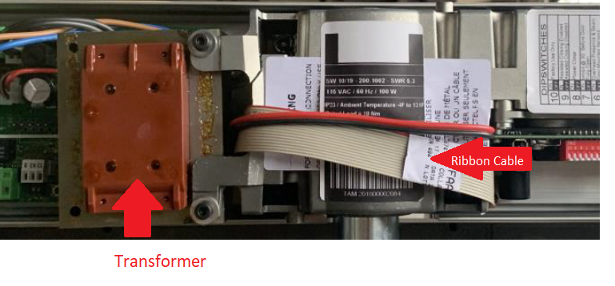

During installation they may have removed the transformer to access one of the mounting bolts. Doing so may have caused the ribbon cable to come unplugged. If the ribbon cable is unplugged the I/O board and adjustment board cannot communicate, but will both show power.

Adjusting Potentiometers are not doing anything

The yellow light should be on after making adjustments. If the yellow light is on they did not press the button to lock the programming in.


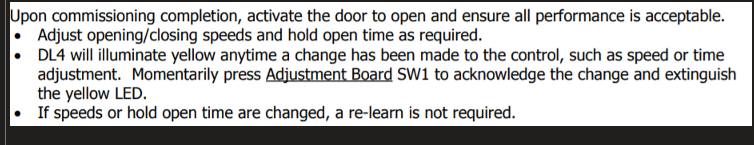

Instructions: Page 12, Step 9

Door stops at 70 Degrees, not allowing full open
Do not do preload with the door open.

Lock Relay is staying active, until power reset

Run a new calibration



LED Flashes red then goes solid during calibration

Ensure the Operator is in the ON position


Hold Open Not functioning

Switch may be installed backwards and not aligning correctly with the sticker
