550 Pivot Swing Study

550 Series Swing Study

When installing the 550 Pivot on doors over 1-3/4" or doors that will have cladding/trim installed on the door, It is important to know that the cladding could effect the swing of the door.

With Cladding/Trim

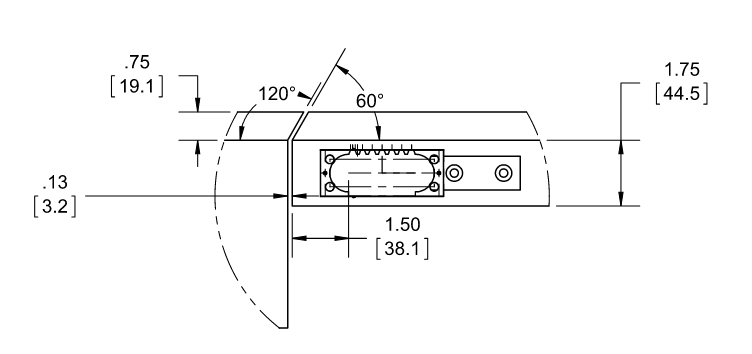

For cladding and trim up to1" You will need to bevel the cladding/trim as show in the diagram to the right. More Information can be found on the attached.

Doors thicker than 1-3/4"

We have tested these on doors up to 3" thick. Each door thickness and application may vary with the location of the pivot on the door to ensure proper clearance.

We recommend contacting techconnet@hagerco.com for more information.

Please include:

1. Door Thickness (including and potential cladding)
2. Door Dimensions (Width x Height)
3. Door Weight
4. Frame dimensions.

With this information, we will be able to provide more insight for your application
